Chim Chimeny Ltd: Bird Guards, Cas and Cowls



SOLID FUEL AND GAS BIRD GUARDS

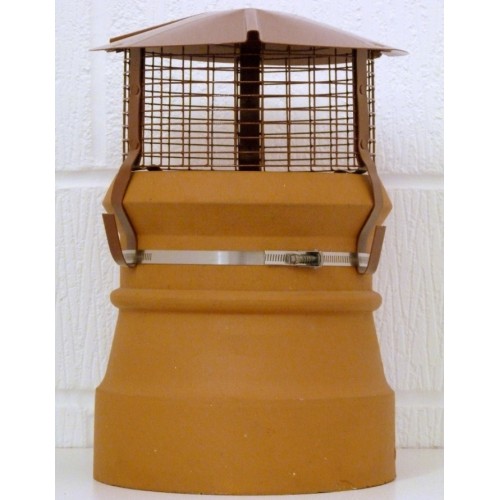

gas birdguard
solid fuel birdguard

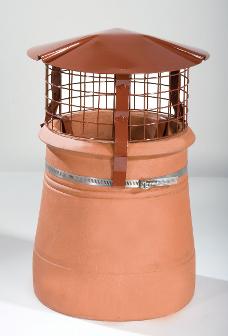

GAS/OIL BIRD GUARDS AND SOLID FUEL BIRDGUARDS (2ND PIC)

The nuisance caused by birds, squirrels, leaves or other debris is now easily remedied by the fitting of a high quality, secure stainless steel Birdguard. Models have the rain cap as standard also offer a substantial reduction in rain entry.

Supplied fully assembled.

Integral raincap reduces rain entry and subsequent structural damage caused by freeze/thaw cycle

Fits live or redundant chimneys

Designed to fit chimneys and flues 150mm - 250mm (6" - 10") internal diameter

Models to BSEN 1856-1:2003

Gas model with smaller mesh is to BS5871:2005

Solid fuel model has larger mesh to reduce clogging associated with timber fires

Either model can be used with oil appliances

Instant easy secure fitting with stainless steel band

Supplied in natural finish

THE ULTIMATE FLUE OUTLET

anti downdraught cowl

The Ultimate Flue Outlet when originally introduced in 1995, was the first gas chimney cowl in the UK to pass the vigorous requirements of BS7 15:1993(200mm). Its ever increasing market share is testimony to its extensive benefits, advantages and superior antidowndraught qualities over other cowls. The U.F.O MKII cowl incorporates four adjustable upstands that address the need for a greater exhaust area demanded by the use of solid fuels. The compact nature of the U.F.O MKII means it can be used on several pots on the same stack without modification, something some other cowls cannot achieve.

Fully assembled including factory fitted birdguard ready for use on gas systems

Simple adjustment of the four upstands makes UFO ready for use on solid fuel

Designed to fit 150mm to 250mm (6" - 10") internal diameter flues and pots

Stainless steel high security strap and leg fixing

Manufactured from 1.2mm thick high grade aluminium alloy powder coated finish as standard in terracotta.

Tested and certificated to BS715:1993, BSEN1856-1 2003 and meets requirements of BSEN1443:2003

Withstands temperatures up to 200C

Suitable for use on gas systems to BS5871:2005 including Radiant Gas fires, coal and log effect gas fires, vertical flues, gas boilers etc

Performance tested for use on oil appliances - OFTEC

Better rain and bird protection than many other cowls

Stainless steel model available

DISUSED CHIMNEY CAP

Redbank Flue Ventilator for theChimney Pot

  • Clay ventilator

  • Not to be used with any live fire or appliance

  • For venting disused flues only

ASPRIATOR/SPINNING COWL

The Aspirotor has a long standing record of successful operation in both Europe and the UK in the curing of downdraught in both flue and chimney systems. Whatever the weather, no matter how hard the wind blows, the stainless steel turbine head maintains efficient draw in the flue.

In situations where the draw on the system is insufficient, the Aspirotor will assist in generating an efficient draw on the flue. The Aspirotor has been widely used to ventilate away the dangers of methane gas on land fill sites.

For use on all fuel systems, gas, oil, wood, coal

Tested and certificated to BS715:1993 and BSEN 1856-1:2003

Stainless steel turbine head

Cast aluminium base

Easy fit using four stainless steel hook bolts and wing nuts

Twin high temperature (up to 200°c) oil filled bearings for a smooth, quiet operation

Only requires a wind speed of 4mph to start turbine head rotating

Easy clean facilities, swivel head as standard to allow easy cleaning of system

Optional anchor leg and strap fixing for exposed locations

LOBSTER BACK COWL

lobster back cowl

The traditional design of the Lobster Back Cowl ensures that the rotating head always has its back to the wind thus allowing efficient exhaust of fumes and smoke.

Perfect for areas of downdraught, negative pressure and  extremely exposed areas.
